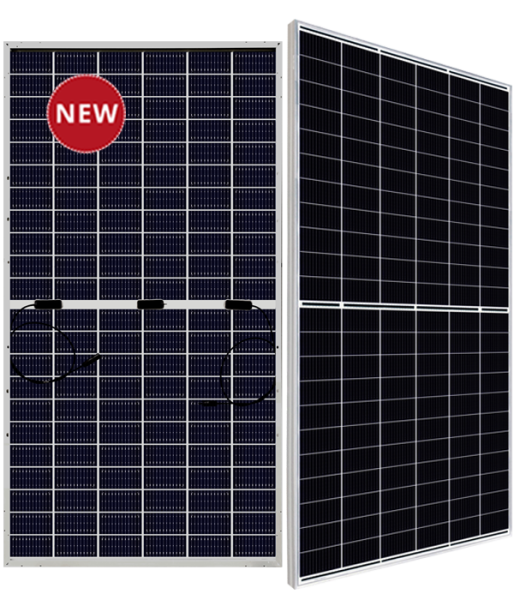

600 Watts canadian solar monocrystalline panels

Description

Product Features

• • 600W module efficiency up to 21.6%
  • 25 years linear power output warranty
  • Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
  • Up to 5.6 % lower system cost
  • 1st year power degradation no more than 2%. Subsequent annual power degradation no more than 0.55%
  • 12.3% LCOE reduction because of higher energy yield and lower system cost

  MECHANICAL DATA

  Specification       Data

  Cell Type: Monocrystalline
  Cell Arrangement: 120 [2 x (10 x 6) ]
  Dimensions: 2172 ˣ 1303 ˣ 35 mm (85.5 ˣ 51.3 ˣ 1.38 in)
  Weight: 31.0 kg (68.3 lbs)
  Front Cover: 3.2 mm tempered glass with antireflective coating
  Frame: Anodized aluminium alloy
  J-Box: IP68, 3 bypass diodes
  Cable: 4 mm2 (IEC), 12 AWG (UL)
  Connector: T6 or T4 series or MC4-EVO2
  Cable Length (Including Connector): 460 mm (18.1 in) (+) / 340 mm (13.4 in) (-) or customized length*
  Per Pallet: 31 pieces
  Per Container: (40′ HQ) 527 pieces
